High Efficient Coaxial Inline Servo Motor Precise Low Backlash Precision Gearbox, Planetary Gear Box

As one of the planetary gear box manufacturers, suppliers, and exporters of mechanical products, We offer planetary gear boxes and many other products.

Please get in touch with us for details.

Mail:[email protected]

Planetary GearBoxes

Features:1. Utilizing involute gear transmission alloy steel treated with carbonize and quencher heat treatment, precise in level
Grinding of gears could attain ISO level 5 the shape and axial modifications could improve the bearing
capacity the mesh can handle, its stability as well as low background noise.
2. With an integrated input shaft, as well as support for bearings on both sides of the planet wheel, achieving greater precision
and greater and more rigidity.
3. Small backlash. The precise single stage can be reached 3 arcmin at the clients' demand.
4. Parts of input that are gyration that have dynamic balance treatment could ensure that the gearbox is running
quickly at high speeds.
5. It is able to be combined to any motor. It is designed to allow for a specific combinations, and is easy to install.
(It is possible to design it to take any kind of motor, and it is easy to mount.)
6. Easy to maintain It doesn't require you for changing the oil(grease) throughout the life of the service.

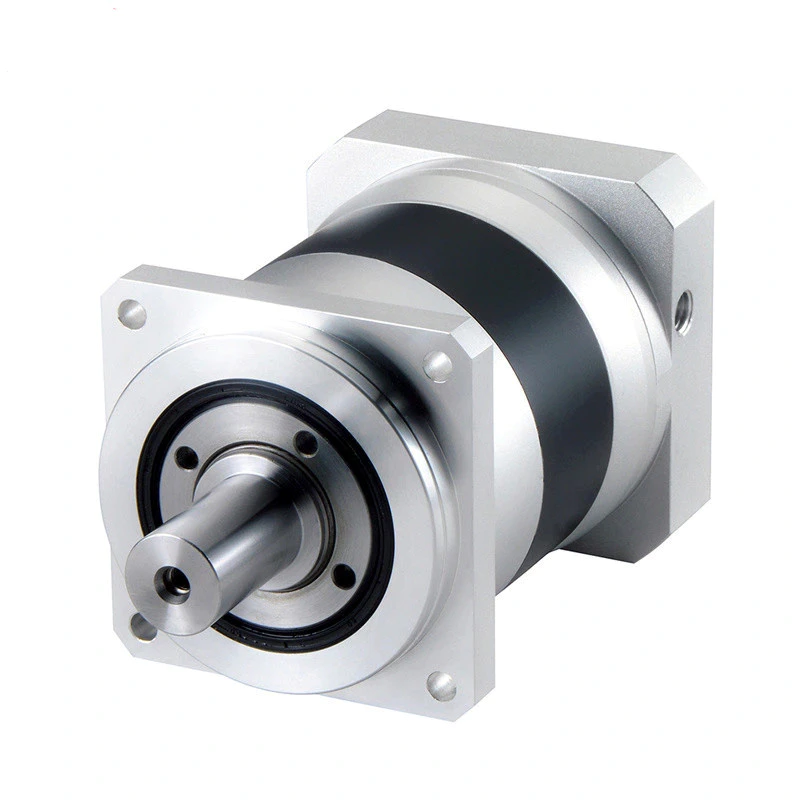

Planetary GearBoxes Image

ep-planetary-gear-boxes-4

What is Planetary Gearboxes?

Planetary gearboxes are the most common kind of industrial gearbox utilized in various industries. They are able to provide high levels of efficiency, and offer greater ratios of transmission than other types of gearboxes.

They are also light and have a greater transmission capacity for torque over other types of gearboxes. This makes them more suitable for projects that demand a huge quantity of power in a smaller spaces for construction.

High Efficiency

Planetary gearboxes feature a high power density since they employ several gears in order to share the burden. This boosts their efficiency, making the gearboxes ideal for use in applications that require speedy transfer energy.

Another benefit of planetary gearboxes is the compact design. They weigh up to half the weight of conventional gears, which lowers the costs of installation and provides an efficient and reliable performance.

They also offer a broad range of speeds and can accurately alter the amount of torque and power that is transmitted. They can be utilized in a range of environments and applications.

High Torque

The large torque produced by the planetary gearboxes can be attributed to the high quantity of planet gears sharing load that allows them to absorb more energy per unit than conventional gearboxes with a parallel axis.

A common planetary gear arrangement comprises three shafts: the sun gear as well as the planet carrier, and an outer the ring gear. The sun gear is the one that drives the planet gears, which rotate in a proportion determined by how many teeth that are in each gear.

In this instance the sun gear has 24 teeth, while the planet gears have 16 teeth. Therefore the ratio is -+24/16 or -+3/ 2 . one clockwise rotation that the sun gear makes results in 1.5 counterclockwise rotations of each planet gear around its axis.

ep-planetary-gear-boxes-4

High Precision

Planetary gearboxes are extensively employed in a range of applications that require high-precision. They are able to produce precise quantities of torque in a compact footprint, which makes them the ideal solution in applications in which space is limited and accuracy is crucial.

These can then be paired with other components to create functions that are small yet powerful and durable. This makes them suitable for a variety of motion control tasks like robotic arms and pipe bend machines.

Planetary gearboxes are engineered with the highest torsional stiffness and with the least amount of backlash. This allows them to deliver the highest power output while minimizing noise and noise.

Compact

Planetary gearboxes are distinguished by an extremely high efficiency. They also feature a higher power density in comparison to other kinds of gears due to their compact design. The inclusion for an outside ring gear, in particular, reduces the size and weight of this kind of gear, which makes it possible the transmission of high torque in smaller construction areas.

Planet gears are typically made from metal components to increase their durability and toughness. They can be utilized in a myriad of ways such as debarking equipment, forestry equipment as well as sawing equipment and vacuum filters, pulp washers and many other.

Like every other mechanical or gear part in a car the planetary gears require fluidity to operate without a hitch and to prevent damage and wear. This type of lubrication is typically grease, oil, or synthetic gel to make sure that the gears function well and are protected from wear. It also cools and lessens the sound or vibration.

ep-planetary-gear-boxes-4bacj

Low Noise

Planetary gearboxes can be a good option for industrial applications due to their quiet operation. This kind can also be small and is able to transmit large torque in an uncomplicated layout.

They are able to be utilized in a range of different applications that include automation devices powered through servomotors. These kinds of gearboxes can be found in a broad range of ratios . They can be tailored to meet the requirements of a specific application.

As opposed to the helical gearboxes, planetary ones are constructed with many teeth interconnected simultaneously to boost efficiency. This means that the distribution of power is more efficient and permits more torque to be transferred.
